Smart Auto Chicken Coop Door with Timer

Effortlessly secure your flock with the Intelligent Automatic Chicken Coop Door with Timer by Hatching Time—built for poultry enthusiasts, homesteaders, and backyard farmers who want reliable, hands-free coop management. Program specific open/close times to keep birds safe from predators while maximizing natural light.

Constructed from durable aluminum alloy and ABS, this door is designed for outdoor use. It delivers low-power performance with 360+ days of operation on one set of AA batteries and includes an anti-trap safety function that reacts if an obstacle is detected. Rated IPX4 to withstand rainy conditions.

Ideal for daily coop use, it installs quickly, is simple to maintain, and includes a manual override for flexibility.

Features & Benefits

• Programmable Timer: Set precise open/close times for consistent routine and safety.

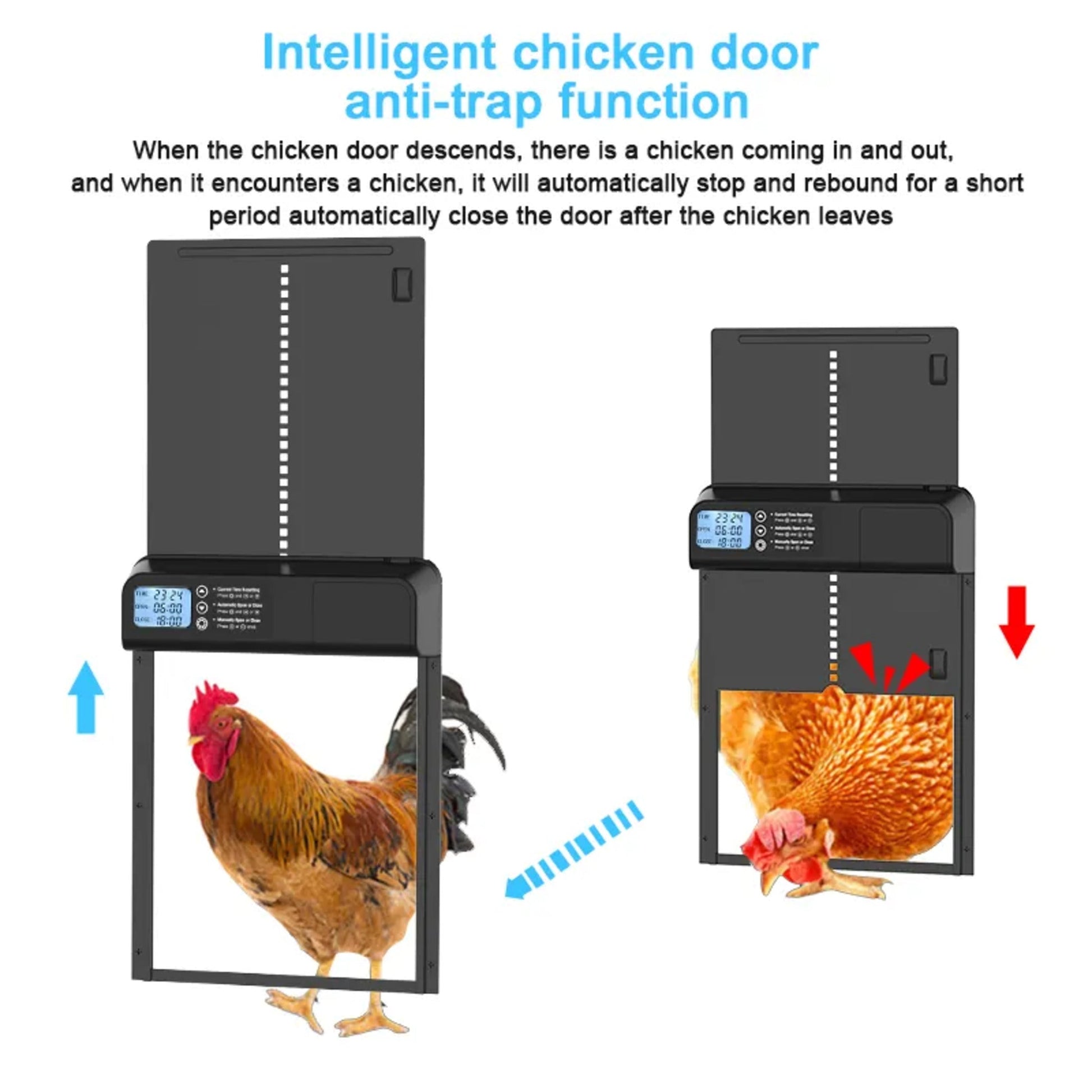

• Anti-Trap Safety: Detects obstacles, stops, rises slightly, pauses 10s, and retries up to 3 times; if still blocked, it stays open and re-tests periodically.
• Weather-Resistant: IPX4 protection against rain.
• Durable Build: Robust ABS + aluminum alloy for long-lasting outdoor performance.
• Energy Efficient: About 360+ days on one set of AA batteries.
• Recommended Temperature: 59–140°F (15–60°C); outside this range, use manual mode.

Specifications

Directions of Use

Install the Door

1. Choose a secure, vertical mounting spot on your coop.

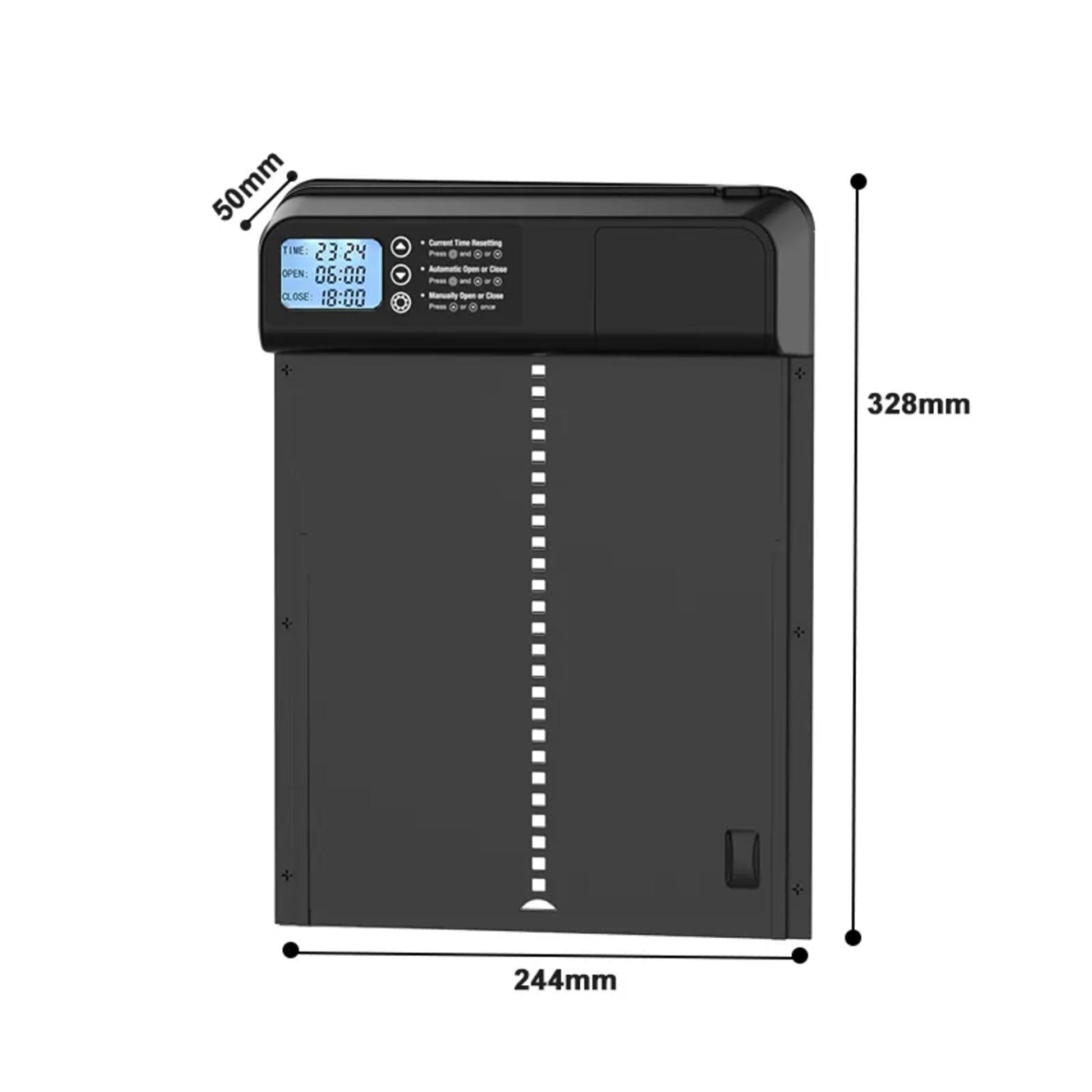

2. Mark the opening using the door’s dimensions (9.6" × 12.9" × 2").
3. Cut the opening, align the frame, and fasten evenly with the included screws.

Insert Batteries

1. Open the battery cover with a screwdriver.
2. Insert three (3) AA batteries and close the cover to power up.

Set Local Time

1. Press the SET button to start time adjustment.
2. Use the up and down buttons to set hours and minutes.
3. Press SET to confirm each value.

Program Open & Close Times

1. Press SET until the opening time row flashes; adjust with the up/down buttons and press SET to confirm.
2. Repeat for the closing time.
3. Wait about 5 seconds for the display to stop flashing (settings saved).

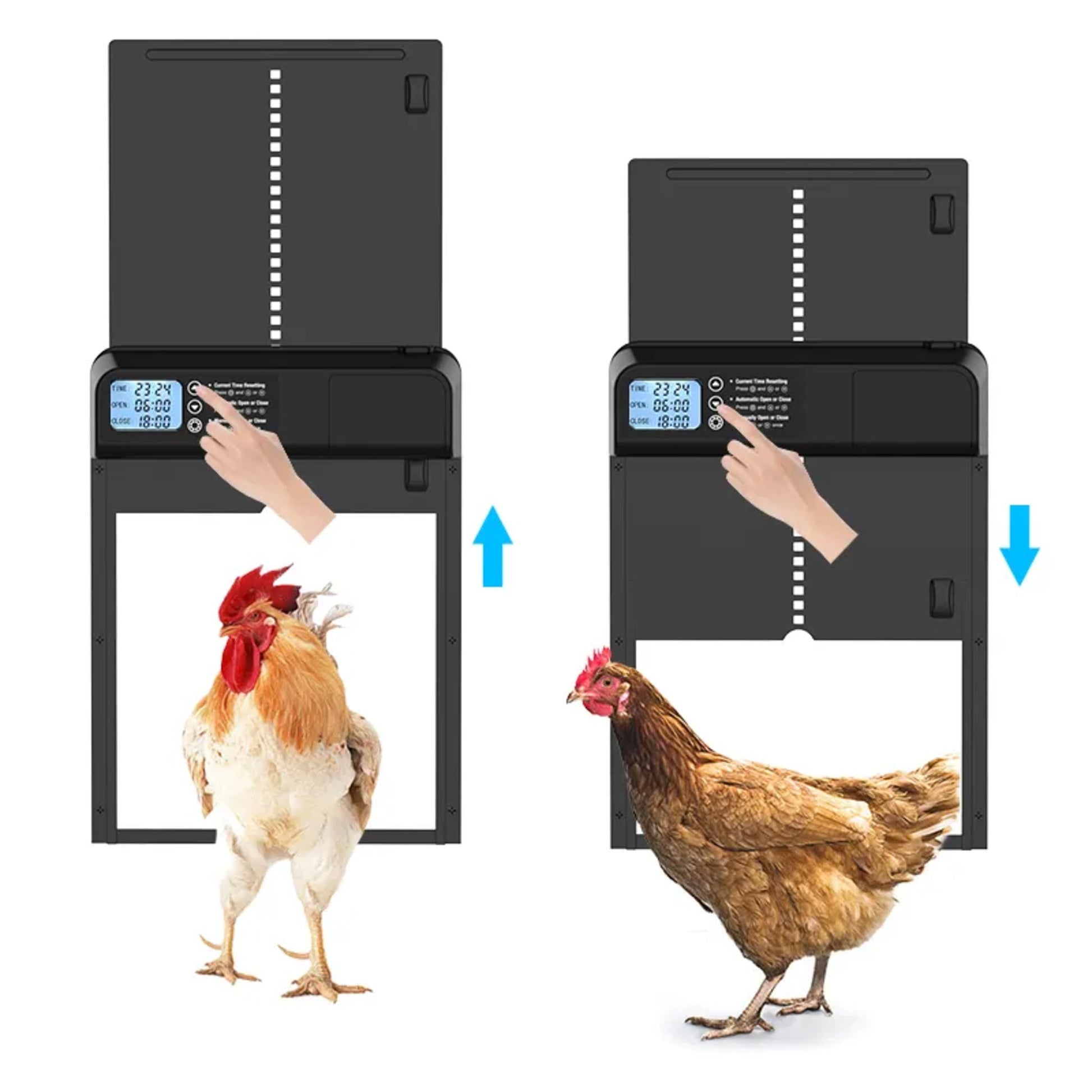

Manual Operation

1. Use the up or down buttons any time to open or close immediately.
2. Emergency stop: press an arrow button to halt the door instantly.

Regular Maintenance

1. Weekly, clean the track and door plate; remove any mud or debris.
2. If jammed, clear debris and test using the arrow buttons.
3. Replace batteries when the low-battery indicator appears.
