Regular price $250.00 USD
Regular price Sale price $250.00 USD
Sale On Backorder
  • Building height - 24'
  • Ceiling heights -
    • First floor - 10'
    • Second floor - 8'
  • Two 10' x 8' overhead doors
  • Complete list of materials
  • 2629 Total Square Feet
    • 1st Floor 1800
    • 2nd Floor 829
  • Width: 50'-0" Depth: 36'-0"
  • 1 Bedroom
  • Roof pitch - 9/12
  • 1 Full Baths, 1 Half Bath
  • Standard Foundation - Slab
  • >Main Floor Studs - 2" x 6"

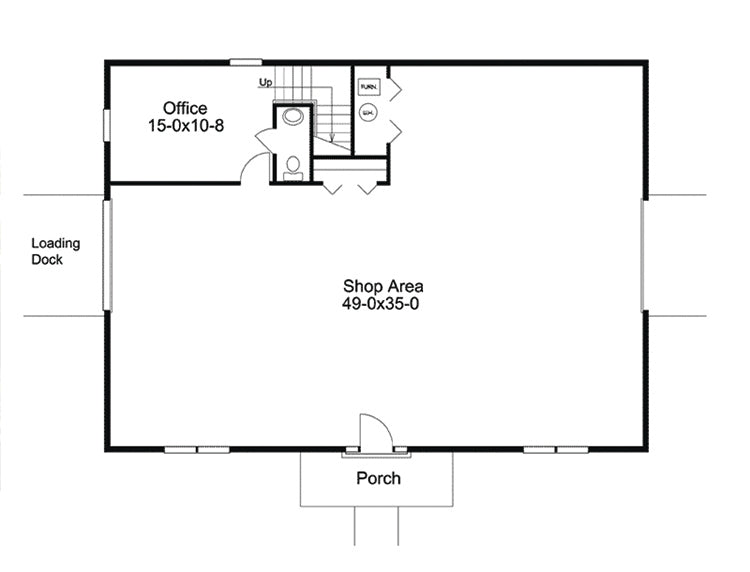

  • The large area on the first floor is 1,800 square feet and includes garage doors for vehicle storage and loading, making it perfect for a machine or wood shop
  • In the corner of the shop is an office with a half bath and stairs leading to the studio apartment

Mother Earth News E-Plans are packed with practical information, innovative ideas, and creative projects right at your fingertips. By supporting digital products like this one, you are helping save millions of trees a year. Order your downloadable PDF and start building today!

System information:7.59MB, load times may vary.

INSTANT DELIVERY ITEM: Order this e-plan, and it will be delivered directly to your computer - no more waiting for delivery or paying expensive shipping and handling fees. Print at 100% on 11x17 paper for best results, or have the plan printed at your nearest print store.


It is your responsibility to make sure that any project you undertake is safe, effective, and legal for your situation. All Ogden Publications' plans are offered AS IS for information and entertainment purposes only. No warranties are expressed or implied. By using this information or these plans, you agree to hold Ogden Publications harmless from any damages or injuries of any kind that might result from errors, omissions, or other causes.

This plan was provided by HDA, Inc.

NOTE: Drawings and photos may vary slightly. Refer to the floor plan for accurate layout.
